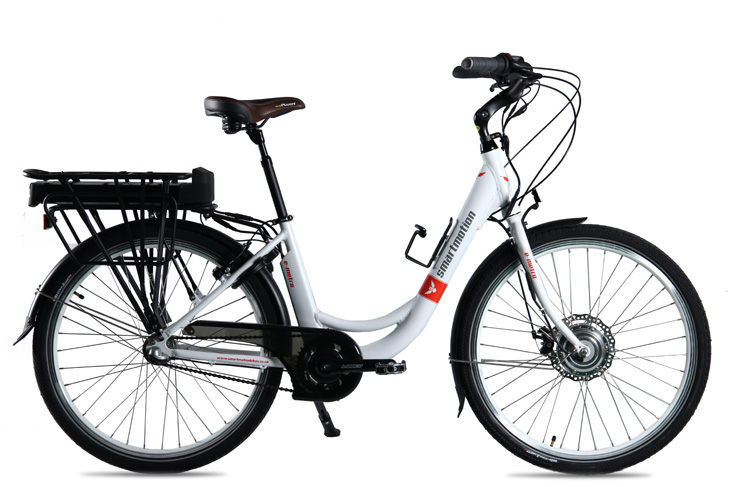

Unbeatable Value and Quality. Designed in New Zealand by Neal-Clyde design consultant Anthony Clyde. The SmartMotion eMetro is the perfect town bike, with the ease of a step-through frame, the simplicity of hub gears, the comfort of a suspension seat post and the security of an integrated frame lock.

Specification:

Motor	Bafang 250W brushless front drive motor (EU legal maximum). Drive system as developed for the New Zealand Postal service. Industrial grade components and weatherproofing
Battery	Advanced lithium-ion Samsung battery with USB charging port for mobile devices. Safety tested and certified to UN38.3 Samsung 37V 10.4Ah 385Wh capacity or Samsung 37V 15.6Ah 577Wh long-range capacity
Battery case	Custom-designed SmartMotion battery case with superior weatherproofing to withstand New Zealand conditions
Controller	Speed sensor hall-less type with 4mph walk-along facility
Mains charger	42V 2A input intelligent charger (full charge time 5 – 8 hours depending on maximum battery capacity)
Connections	Marine-rated weatherproof sockets on all components for simple and quick servicing and replacement
Assisted range	Realistic actual battery ranges: 10.4 Ah battery: 23 to 33 miles 15.6 Ah battery: 35 to 50 miles We don’t believe in publishing optimum, theoretical range figures. Our figures were achieved using fat blokes riding up hills!
Power modes	Pedal assist: 3-level assist (L/M/H) customised to NEXUS hub gearing Throttle assist: while pedalling Throttle only: to 15.5mph/25kph Active throttle in all modes (can be deactivated)
Maximum powered speed	15.5mph/25kph (UK/EU legal maximum)
Handlebar LED panel controls	Power on/off switch Battery capacity indicator Pedal assist settings (L/M/H) 4mph walk-along facility
Throttle	Twist & go – left-hand, half-grip (can be deactivated)
Bicycle weight	21kg all-up-weight (including battery)
Frame	6061 T4 T6 alloy step-through

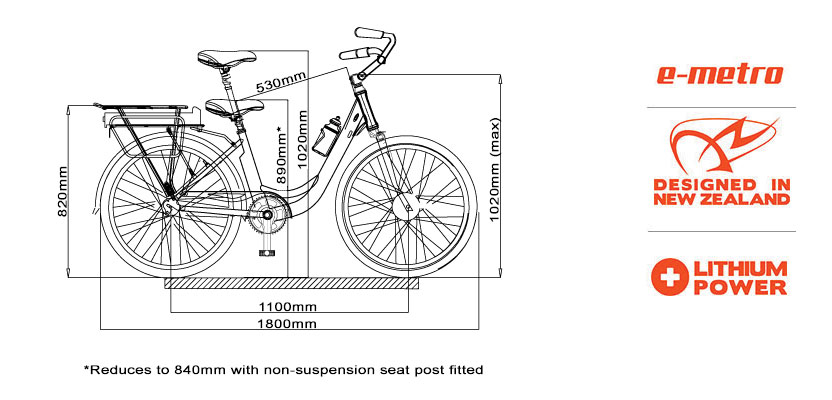

Size	Min: 28" (71cm) inside leg - can be reduced to 26" (66cm) inside leg with non-suspension seat post fitted Max: 33" (84cm) inside leg Nominal frame size: 16" / 40cm
Finish	Polar white
Forks	Rigid (colour matched to frame)
Seat post	350mm / 27.2mm ⌀ suspension seat post
Saddle	Velo plush
Handlebars	Black alloy hi-rise with comfort grips
Stem	Black alloy with adjustable height and reach
Kick stand	Height adjustable black alloy - heavy-duty
Gears	Shimano NEXUS 3-speed internal hub gears with Shimano NEXUS Revo-Shift
Chain ring	40T Lasco
Chain guard	Full, P type ABS/plastic
Chain	KMC Z51RB rust resistant
Cranks	Lasco 170mm Black alloy
Bottom Bracket	Sealed bearing cassette
Pedals	Wellgo alloy silver
Brakes	Front: Tektro disc – 180mm rotor Rear: Tektro V brake
Rims	Alloy double wall 26" – colour matched to frame
Spokes	Stainless steel specifically designed for ebikes
Tyres	26” X 1.9” CST Commuter tyres with Kevlar guard puncture protection and reflective side-wall strip
Mudguards	Full length mudguards with heavy-duty stainless steel stays
Safety equipment	Reflectors: front, rear, pedals and sides (tyres), bell (integrated into left/rear brake lever)
Equipment included	Integrated frame C-lock, heavy-duty alloy rear battery rack with additional bracing for maximum loading capacity, incorporates spring top and elastic for luggage - specially designed for optional pannier, basket and infant seat
Optional equipment	Rear basket, infant seat
Warranty	Battery & motor: 2 years Frame: 6 years Other components: 1 year (excluding consumables)
Certification	Bike EN15194 - Battery UN38.3
SRP	£1099 - 10.4Ah battery £1249 - 15.6Ah battery

eMetro optional accessories (shown on eCity model): rear basket / infant seat

Integrated frame locks and Samsung Lithium batteries with USB charging port on all models
