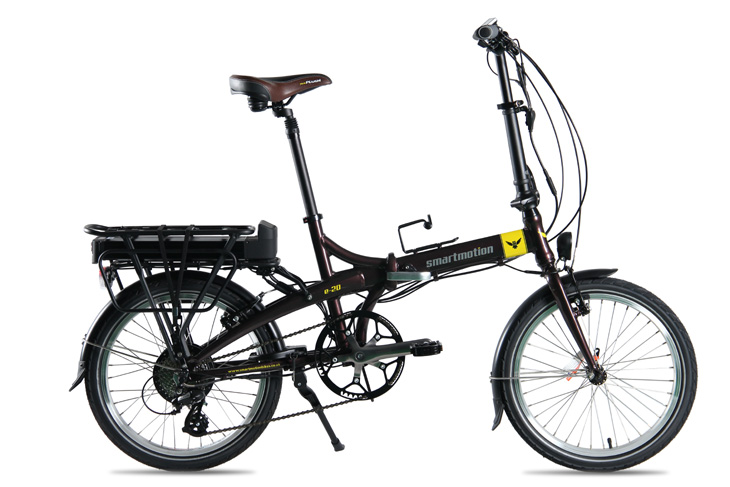

At last, a folding bike that actually rides well! Many folders suffer from overly compact geometry, Not so the e20, the frame has been totally redesigned, adding length and altering the seat post angle resulting in a folding bike that is a joy to ride. The long-range battery and 8-speed gears make the e-20 a practical winner in every sense.
Specification:
| Motor | DAPU 250W brushless rear drive motor (EU legal maximum). Drive system as developed for the New Zealand Postal service. Industrial grade components and weatherproofing |
| Battery |
Samsung 37V 15.6Ah 577Wh capacity advanced lithium-ion battery with USB charging port for mobile devices. Safety tested and certified to UN38.3 |
| Battery case | Custom-designed SmartMotion battery case with superior weatherproofing to withstand New Zealand conditions |
| Controller | Speed sensor hall-less controller with throttle restrict & soft-start settings - weatherproof close fitting sockets |
| Mains charger | 42V 2A input intelligent charger (full charge time 5 – 8 hours depending on maximum battery capacity) |
| Connections | Marine-rated weatherproof sockets on all components for quick and simple servicing and replacement |
| Assisted range | Realistic actual battery ranges*:
|
| Power modes |
|
| Maximum powered speed | 15.5mph/25kph (UK/EU legal maximum) - offroad de-restriction where legally permitted |
| Handlebar LCD panel controls | Water resistant LCD panel:
|
| Throttle | Twist & go – left-hand, half-grip (can be deactivated) |
| Bicycle weight | 24.5kg all-up-weight (including battery) |
| Frame | 6061
T4 T6 alloy folding frame |

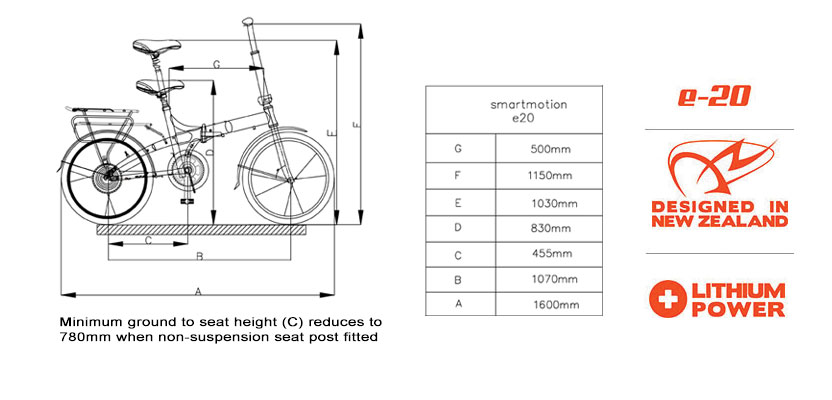

| Size | Min: 27" (69cm) inside leg - can be reduced to 25" (63.5cm) inside leg with non-suspension seat post fitted Max: 33" (84cm) inside leg Nominal frame size: 15" / 38cm Size when folded (cm): 68(H) x 44(W) x 84 (L) |
| Finish | Metallic bronze |
| Forks | Rigid (colour matched to frame) |
| Seat post | 400mm / 30.4mm ⌀ suspension seat post |
| Saddle | Velo plush |
| Handlebars | Black
alloy with comfort grips |
| Stem | Black alloy folding stem with adjustable height for a relaxed, upright ride posture |
| Kick stand | Height adjustable black alloy |
| Gears | Shimano Altus 8-speed derailleur with Shimano Acera RAPIDFIRE plus 8-speed shifter Shimano 8-speed 11-32T cassette |
| Chain ring | 52T 170L CNC black oval |
| Chain guard | N/A |
| Chain | KMC Z51RB rust resistant |
| Cranks | 170mm Black alloy |
| Bottom Bracket | Sealed bearing cassette |
| Pedals | Wellgo Alloy folding Black |
| Brakes | Front: Tektro V brake Rear: Tektro V brake |
| Rims | Alex DM24 alloy double wall 20" |
| Spokes | Stainless steel specifically designed for ebikes |
| Tyres | 20” X 1.95” Kenda K1088 tyres with Kevlar guard puncture protection and reflective
side-wall strip |
| Mudguards | Full length mudguards with heavy-duty stainless steel stays |
| Safety equipment |
Front & rear Spanninga lights, powered from main battery - StVZO approved Reflectors: front, rear, pedals and sides (tyres), bell (integrated into left/rear brake lever) |
| Equipment included | Front & rear lights. Integrated frame C-lock, heavy-duty alloy rear battery rack with additional bracing for maximum
loading capacity, incorporates spring top
and elastic for luggage - specially designed for optional pannier and basket |
| Optional equipment | Rear basket |
| Warranty | Battery
& motor: 2 years Frame: 6 years Other components: 1 year (excluding consumables) |
| Certification | Bike EN15194 - Battery UN38.3 |
| RRP | £1399 |

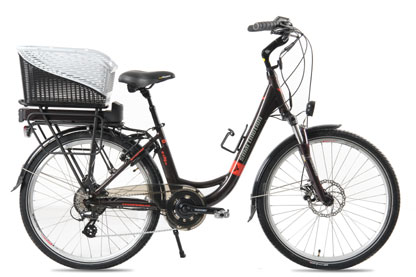

e20 optional accessories (shown on eCity model): rear basket
Integrated frame locks and Samsung Lithium batteries with USB charging port on all models
