Powerful rear-wheel-drive to tackle any hill. Integrated front and rear
lights, front and seat suspension plus an extra plush seat for total comfort. High spec mechanics including Tektro disc brakes front & rear plus an integrated frame lock. With a step-through frame and comfortable upright riding position.
Specification:
| Motor | DAPU 250W brushless rear drive motor (EU legal maximum). Drive system as developed for the New Zealand Postal service. Industrial grade components and weatherproofing |
| Battery |
Samsung 37V 15.6Ah 577Wh capacity advanced lithium-ion battery with USB charging port for mobile devices. Safety tested and certified to UN38.3 |
| Battery case | Custom-designed SmartMotion battery case with superior weatherproofing to withstand New Zealand conditions |
| Controller | Speed
sensor hall-less controller with throttle restrict & soft-start settings - weatherproof close fitting sockets |
| Mains charger | 42V 2A input intelligent charger (full charge time 5 – 8 hours depending on maximum battery capacity) |
| Connections | Marine-rated weatherproof sockets on all components for quick and simple servicing and replacement |
| Assisted range | Realistic actual battery ranges*:
|
| Power modes |
|
| Maximum powered speed | 15.5mph/25kph (UK/EU legal maximum) - offroad de-restriction where legally permitted |
| Handlebar LCD panel controls | Water resistant LCD panel:
|
| Throttle | Twist & go – left-hand, half-grip (can be deactivated) |
| Bicycle weight | 24.8kg all-up-weight (including battery) |
| Frame | 6061 T4 T6 alloy step-through |

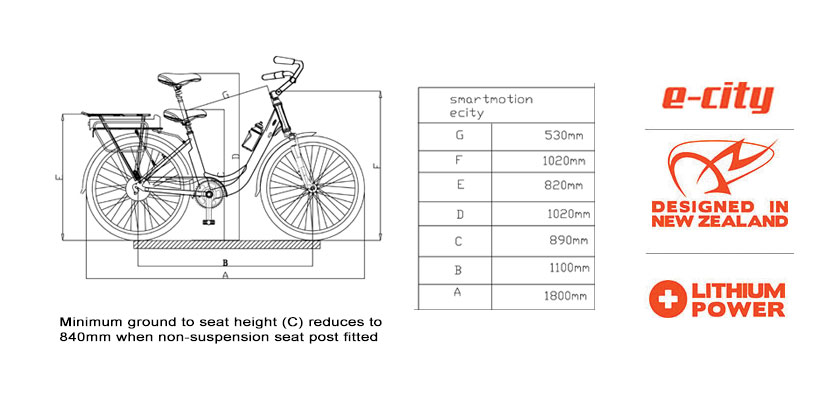

| Size | Min: 28" (71cm) inside leg - can be reduced to 26" (66cm) inside leg with non-suspension seat post fitted Max: 33" (84cm) inside leg Nominal frame size: 16" / 40cm |

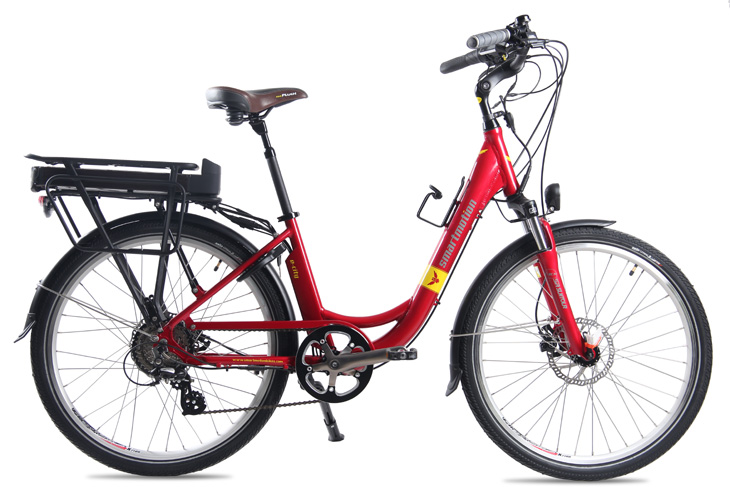

| Finish | Classic red |
| Forks | SR suntour suspension alloy (colour matched to frame) |
| Seat post | 350mm / 27.2mm ⌀ suspension seat post |
| Saddle | Velo plush |
| Handlebars | Black alloy hi-rise with comfort grips |
| Stem | Black alloy with adjustable height and reach |
| Kick stand | Height
adjustable black alloy - heavy duty |
| Gears | Shimano Altus 8-speed derailleur with Shimano Acera RAPIDFIRE plus 8-speed shifter Shimano 8-speed 11-32T cassette |
| Chain ring | 44T 170L Samox CNC black |
| Chain guard | Alloy, colour matched to frame |
| Chain | KMC Z51RB rust resistant |
| Cranks | Samox 170mm pewter alloy |
| Bottom Bracket | Sealed bearing cassette |
| Pedals | Wellgo alloy silver |
| Brakes | Front: Tektro disc – 180mm rotor Rear: Tektro disc – 180mm rotor |
| Rims | Alex X2100 alloy double wall 26" |
| Spokes | Stainless steel specifically designed for ebikes |
| Tyres | 26” X 1.9” CST Commuter tyres with Kevlar guard puncture protection and reflective side-wall strip |
| Mudguards | Full length mudguards with heavy-duty stainless steel stays |
| Safety equipment |
Front & rear Spanninga lights, powered from main battery - StVZO approved Reflectors: front, rear, pedals and sides (tyres), bell (integrated into left/rear brake lever) |
| Equipment included | Front & rear lights. Integrated frame C-lock, heavy-duty alloy rear battery rack with additional bracing for maximum
loading capacity, incorporates spring top
and elastic for luggage - specially designed for optional pannier, basket and infant seat |
| Optional equipment | Rear basket, infant seat |
| Warranty | Battery
& motor: 2 years Frame: 6 years Other components: 1 year (excluding consumables) |
| Certification | Bike EN15194 - Battery UN38.3 |
| RRP | £1449 |
eCity optional accessories: rear basket / infant seat
Integrated frame locks and Samsung Lithium batteries with USB charging port on all models
